Quark 25 WBM KTP
Avensys QUARK 025 SSC are high-efficiency Compact Domestic Heat Recovery Units and represent the ideal solution to control air quality by saving energy with an efficiency that exceeds 90%
QUARK 025 SSC are high-efficiency heat recovery units and represent the ideal solution to control air quality by saving energy with an efficiency that exceeds 90%. Ideal for all needs in any qualified installation: apartments, small offices, meeting rooms..

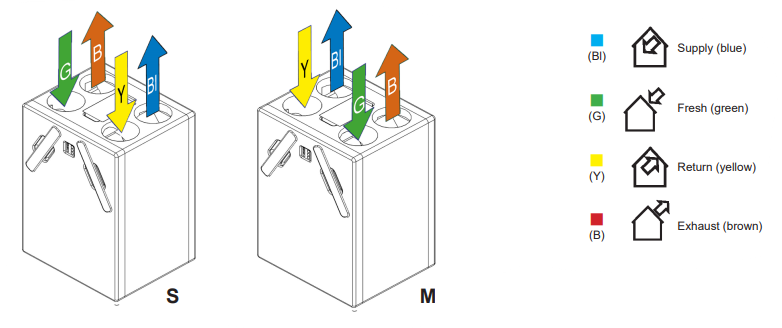

The unit is part of a range of flexible competitive and compact airflow units. The airflow configuration is based on 3 possible layouts.
Once the airflow layout is specified the unit can be installed in 2 different possible positions without
problem (vertical floor standing, horizontal ceiling mounted). The range can be integrated by a wide
range of accessories on request.
- Control system Pre-programmed self-contained operation (basic). In built or remote panel controller (optional) is integrated in a plug and play system and allows a fast and secure installation.
- The system can be controlled by WIFI trough APP (optional) or network cable from PC (optional). Probes or accessories can also be connected to the unit easily, by a quick plug & play wiring systems. See list of accessories for all options available.
- Frame Casing (optional) can be made in high gauge epoxy coated steel covering the structural EPP moulded insulation. The EPP is granted to have a min 30 mm thickness.
- Heat exchangers Counterflow high efficiency heat exchangers. Certified to EN 308 standards .
- Fans are statically and dynamically balanced. Impeller are directly driven by EC motors.
- Defrost by temporary flow imbalancing. For cold environments air preheating can be added on demand.
- Bypass Free cooling (summer) by 100% bypass damper.
- Accessories A wide range of internal and external accessories is available.
- Communication features On demand are available Modbus Module, TCP/IP and WIFI/BT module.
- Maintenance and service On the access side of the units, removable panels make installation and maintenance operations faster and easier. All components are guaranteed can be removed in an easy and convenient way.
