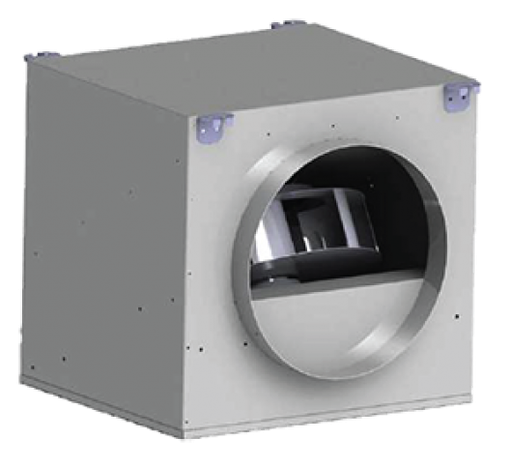

Ventzone Centrifugal Box Fan 250mm
VZ-CFG-BOX 250dia Box Fan with Centrifugal Impeller
- In-line centrifugal fans in High structure galvanised steel casing
- New Cube and silent design
- Designed for supply and exhaust ventilation systems
- Exhaust or supply ventilation depends on the fan installation in the system
- Sealed terminal box—IP55
- Single-phase motor external ball bearing rotor is equipped with a centrifugal impeller, with backward curved blades
- Built-in thermal protection with automatic restart
- Designed for duct mounting with air ducts of the appropriate diameter at any point of the ventilation system and at any angle
- Attached to the wall or ceiling using anchor brackets
- Speed adjustable. Smooth or stepped and carried out using a thyristor or autotransformer regulator
- Several fans can be connected to one control device, provided that their total power and operating current do not exceed the nominal parameters of the regulator.
- Ingress protection rating for the electrical equipment against solids and water—IPX4, for the
motor—IP55.
