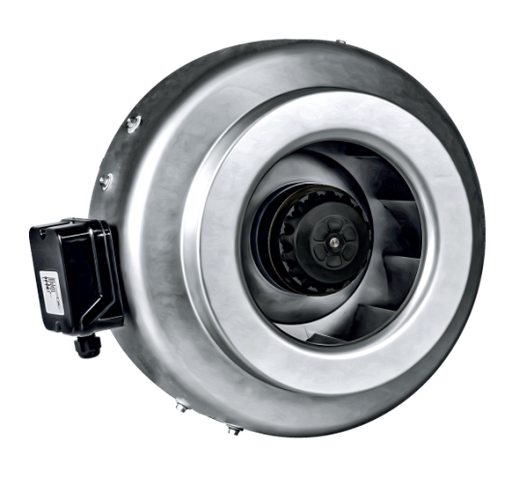

Ventzone Centrifugal Galvanized Duct Fan 100mm
VZ-CFG-GL 100dia Duct Fan with Centrifugal Impeller in Galvanised Casing
- In-line centrifugal fans in High structure galvanised steel casing
- They are designed for supply and exhaust ventilation systems
- Exhaust or supply ventilation depends on the fan installation in the system
- Sealed terminal box—IP55
- Single-phase motor external ball bearing rotor is equipped with a centrifugal impeller, with backward curved blades. It has built-in thermal protection with automatic restart. • The fans are equipped with an impeller with metal blades
- They are designed for duct mounting with air ducts of the appropriate diameter at any point of the ventilation system and at any angle
- It is attached to the wall or ceiling using anchor brackets
- Speed adjustment is possible. It can be either smooth or stepped and carried out using a thyristor or autotransformer regulator. Several fans can be connected to one control device, provided that their total power and operating current do not exceed the nominal parameters of the regulator
- Ingress protection rating for the electrical equipment against solids and water—IPX4,
for the motor—IP55.
