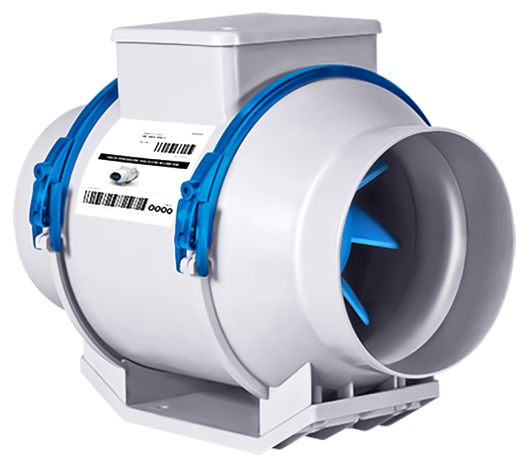

Ventzone High Pressure Mixed Flow Axial Fan 100mm


£ 33.60 33.6 GBP £ 33.60 VAT Excluded

£ 33.60 VAT Excluded

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    Shipping Cost will be Calculated at Checkout (free if over £300 exc VAT)
    Next Day Delivery, if ordered before 2pm (Mon to Friday)
    Trade Accounts Discounts Available, Please Contact Us for Further Information

    • The high pressure mixed-flow in-line fan is designed for supply and exhaust ventilation systems.
    • It is designed for duct mounting with air ducts of the appropriate diameter at any point of the ventilation system and at any angle.
    • Exhaust or supply ventilation depending on the fan installation in the system.
    • The fan casing is made of high quality and durable plastic.
    • Sealed mounting box.
    • Single-phase motor with external rotor is equipped with high-tech design high pressure axial fan.
    • It has built-in thermal protection with automatic restart.
    • It is attached to the wall or ceiling using anchor brackets (not in the set).
    • Speed adjustment is possible. It can be either smooth or stepped and carried out using a thyristor or autotransformer regulator. Several fans can be connected to one control device, provided that their total power and operating current do not exceed the nominal parameters of the regulator.
    • Ingress protection rating for the electrical equipment against solids and water—IP24, for the motor—IP44.
